The success or failure of a software development project often hinges on its underlying architecture

What is Software Architecture?

Software architecture is the design framework of a software system. It represents the decisions about the overall structure and behavior of the system.

This framework helps to outline how different parts of the software interact and ensures the system can achieve important qualities like modifiability, scalability availability, and security. The guidelines shape how a software system is built and maintained.

What are Software Architecture Patterns?

A software architecture design pattern is a reusable solution to a commonly occurring problem within a given context in software design.

It provides a general template for how to solve a particular design issue, helping to streamline the development process and ensuring the architecture is robust, scalable, and efficient.

These patterns are like blueprints that guide software architects and developers in creating software systems with specific desired qualities and functionalities.

These patterns emerged as collective responses to recurring challenges in software development.

This post will explore the different software architecture patterns, their advantages and disadvantages, and appropriate use cases for each.

Additionally, we will delve into common mistakes in their application, provide strategies to avoid them and offer insights on choosing the correct pattern for your project, including the possibility of combining multiple patterns in a single project.

The Role of These Patterns in Software Development

Architectural design patterns play a critical role in software development by providing a tried and tested framework for system design.

They help organize the structure of software systems, making them more manageable and understandable.

By using these patterns, architects and developers can focus on specific aspects of the system, such as performance, scalability, or maintainability, without reinventing the wheel for each new project.

Benefits of Using Software Architecture Design Patterns

1. Predictability: Using established patterns brings predictability to the software development process. Developers know what to expect and can anticipate potential issues and challenges.
2. Efficiency: Reusing proven solutions increases efficiency, as developers can apply known solutions to common problems without spending time devising new strategies.
3. Communication: These patterns provide a common language for developers, architects, and other stakeholders, facilitating better communication and understanding within and across different teams.
4. Quality: Well-established patterns are associated with high-quality design, as they have been refined and improved over multiple implementations.
5. Customization: While these patterns provide a general framework, they also offer flexibility. Developers can tailor these patterns to meet the specific needs of their projects, ensuring that the architecture is aligned with project goals.
6. Robustness: Architecture patterns provide a solid foundation for building software systems that can withstand varying loads and continue to operate under diverse conditions.
7. Scalability: They often include inherent strategies for handling increased usage or data volume, making expanding the system's capabilities easier without extensive redesign.
8. Maintainability: By employing familiar structures, these patterns make it easier for developers to understand, modify, and extend the system over time.
9. Predictability: Applying well-established patterns brings predictability to the development process. Developers know what challenges to expect and how to address them efficiently.
10. Efficiency: Patterns expedite the development process by providing ready-to-use solutions, reducing the time spent devising new approaches to common problems.
11. Knowledge Sharing: They encapsulate the collective wisdom of many architects and developers, making sharing and disseminating knowledge within and across teams easier.
12. Cumulative Wisdom: Architectural patterns represent the cumulative wisdom of software practitioners and theorists. They are discovered through practice and are constantly evolving.
13. Shared Characteristics and Behaviors: These patterns are cataloged much like biological species, with their shared characteristics and behaviors identified and described. This cataloging helps us understand how different patterns lead to other behaviors and responses in various environmental conditions.
14. Innovation on a Solid Foundation: While each project might have unique requirements, starting with a pattern allows teams to innovate on a solid and proven foundation, reducing risks and guiding design decisions.

In summary, software architecture patterns provide a structured and adaptable approach to designing software systems, ensuring they are built on a solid foundation of proven practices and solutions.

Overview of the most common software architecture patterns

Layered (n-tier) Architecture Pattern

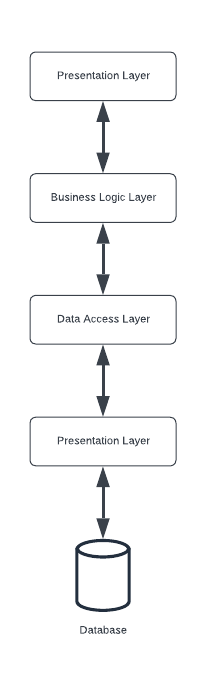

The Layered (n-tier) software architecture design pattern organizes a software system into functional layers, each with a specific role and responsibility.

Commonly, the system consists of three layers: presentation (user interface), business logic (processing), and data access (storage).

Each layer interacts only with the layer directly below, promoting the separation of concerns and making the system easier to manage and maintain.

This structure enables developers to modify or update one layer without significantly affecting the others, enhancing the system's flexibility and scalability.

Pros of Layered Architecture

1. Separation of Concerns: Dividing the system into distinct layers simplifies the development and maintenance. Each layer can focus on its specific role without being concerned about the details of other layers.
2. Reusability: The separation allows the reuse of functionality within the same layer across different application parts.
3. Modularity: Enhances modularity, making the system easier to understand and manage.
4. Ease of Development: Familiar to most developers, this pattern simplifies the development process and reduces the learning curve for new team members.
5. Independence: Layers can be developed and evolved separately, supporting modifiability and portability.

Cons of Layered Architecture

1. Performance Overhead: The pattern can introduce performance penalties, as calls might need to traverse multiple layers before reaching the lower-level functionalities.
2. Rigidity in Layer Interaction: The strict layer hierarchy can sometimes lead to inefficiencies, especially if higher layers cannot directly access lower-level functionalities when needed.
3. Complexity in Large Applications: Managing the dependencies and interactions between layers can become challenging in extensive systems.

Use Cases for Layered Architecture

1. Enterprise Applications: Ideal for enterprise-level applications where the separation of business logic, data access, and user interface is crucial.
2. Web Applications: Commonly used in web applications where a clear distinction between presentation, business logic, and data access layers is beneficial.
3. Legacy Systems: Suitable for systems that require precise and well-documented modules, especially when evolving or maintaining legacy systems.

In conclusion, the Layered (n-tier) Architecture pattern is beneficial when separation of concerns and clear module organization are critical.

However, it's essential to be aware of its potential impact on system performance and to consider whether the strict layering model aligns with the project's specific needs.

Client-Server Architecture Pattern

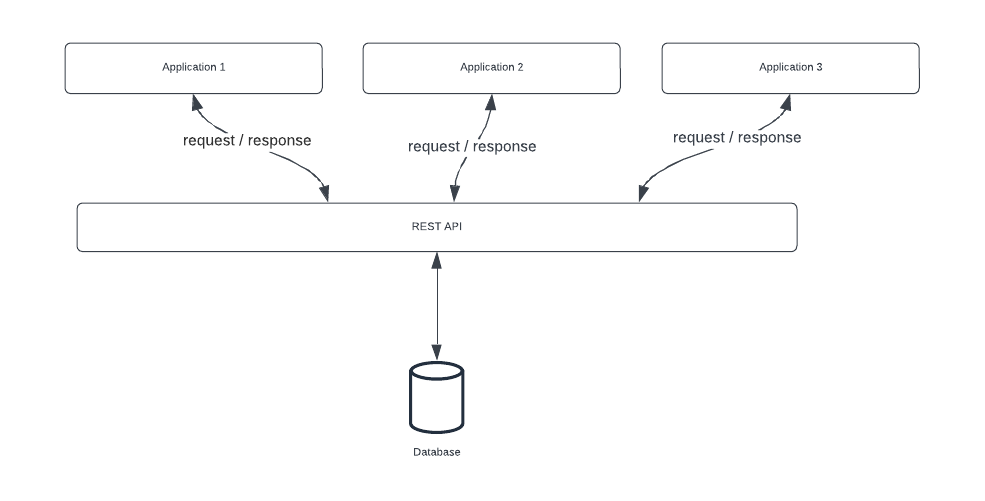

The Client-Server Architecture pattern is a fundamental model in software design where the workload is distributed between providers of a resource or service, known as servers, and service requesters, known as clients.

This model streamlines the communication and data flow in a networked environment, often simplifying the implementation of distributed systems.

Pros of Client-Server Architecture

1. Centralized Management: Servers manage and control resource access, making implementing updates and security measures easier.
2. Scalability: The server can handle multiple client requests simultaneously, offering scalability in running increased workloads.
3. Resource Optimization: By offloading tasks to the server, client machines can operate with fewer resources, optimizing overall system performance.
4. Maintenance Efficiency: Centralized server management allows for efficient updating and maintenance without impacting the client-side experience.
5. Specialization and Efficiency: Clients and servers can be optimized for their respective tasks, improving overall system efficiency.

Cons of Client-Server Architecture

1. Single Point of Failure: The server can become a performance bottleneck, and the entire system may be compromised if it fails.
2. Complex Load Balancing: Managing the load on the server to ensure smooth operation under high demand can be tricky.
3. Dependency on Network: Client-server interactions depend highly on reliability and performance.
4. Security Vulnerabilities: The centralized nature of the server makes it a target for security attacks.
5. Complexity in Decision-Making: Deciding where to allocate functionality (client or server) can be challenging and costly to modify post-deployment.

Use Cases for Client-Server Architecture

1. Web-Based Applications: Ideal for applications where clients are web browsers accessing services hosted on a server, such as e-commerce sites.
2. Information Systems: Suitable for local network systems where clients are GUI-based applications interacting with a central database management system.
3. Email Systems: Effective for email applications where the server manages the storage and retrieval of emails while clients handle the user interface.
4. Online Gaming: Utilized in online gaming where the server manages the game state and client devices handle the gameplay interface.

In conclusion, the Client-Server Architecture pattern is an excellent choice for applications requiring centralized control, management, and scalability. However, addressing its potential drawbacks, such as single-point failures and performance bottlenecks, is essential to ensure a reliable and efficient system.

Microservices Architecture Pattern

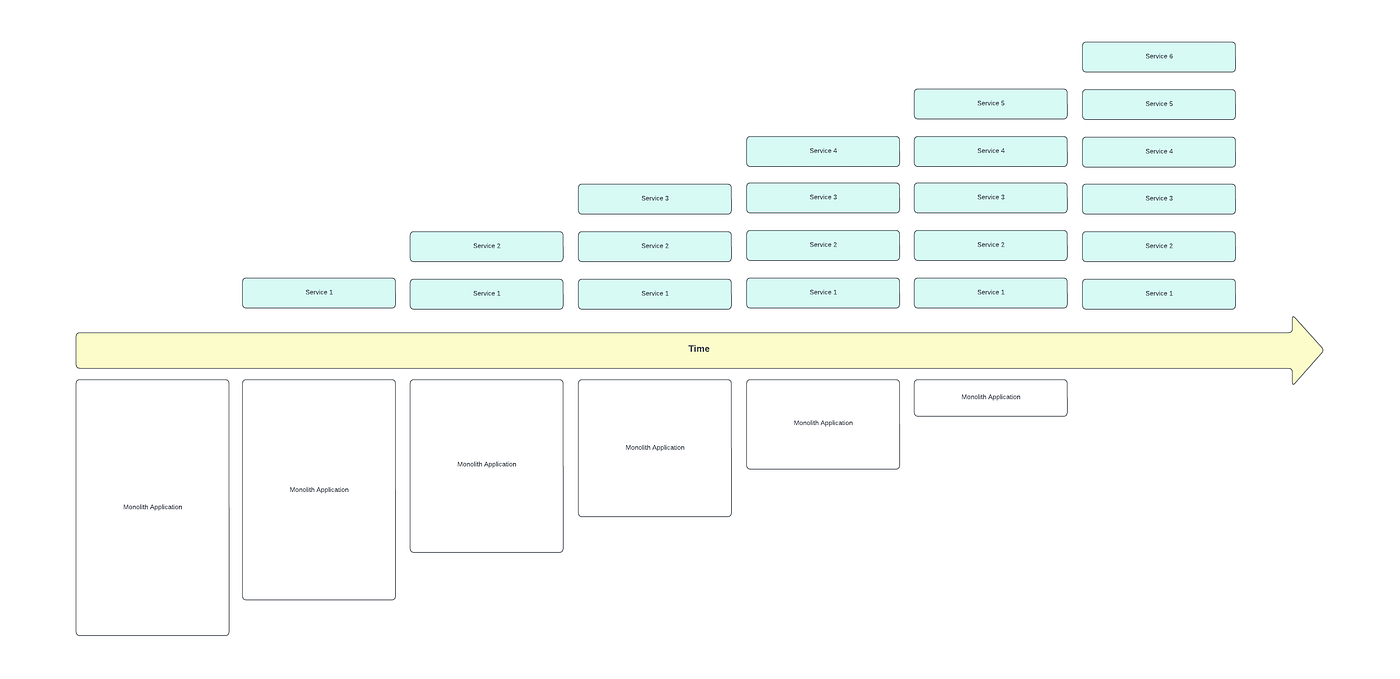

The Microservices Architecture pattern is a modern approach in software engineering where an application is structured as a collection of loosely coupled services.

Each microservice is a small, independent, and deployable module focused on a single functionality or business capability. This architectural style emphasizes agility, scalability, and the ability to maintain and deploy services independently.

Pros of Microservices Architecture

1. Scalability: Individual services can be scaled independently, allowing for efficient resource utilization and handling varying loads.
2. Flexibility in Technologies: Different technologies and programming languages can be used in different services, providing flexibility and optimal technology use.
3. Faster Deployment: Smaller, independent services allow quicker and more frequent deployments, accelerating the delivery of new features and updates.
4. Fault Isolation: Failures in one microservice have limited impact on others, improving overall system resilience.
5. Simplified Debugging and Maintenance: Smaller codebases and separation of concerns make it easier to understand, debug, and maintain services.

Cons of Microservices Architecture

1. Complexity in Communication: Inter-service communication adds complexity, especially when dealing with data consistency and network latency.
2. Distributed System Challenges: Managing a distributed system, including network issues, load balancing, and data consistency, can be complex.
3. Overhead in Management: Each microservice might require database and transaction management, leading to increased management overhead.
4. Potential for Redundant Efforts: Without proper planning, there can be redundancy in efforts and functionality across services.
5. Difficulty in Testing: Testing in a microservices environment can be challenging due to the interdependence of services and the need for sophisticated testing environments.

Use Cases for Microservices Architecture

1. E-commerce Platforms: Ideal for handling diverse functionalities like inventory management, order processing, and user profiles as independent services.
2. Streaming Services: Suitable for streaming platforms where different aspects like user authentication, content delivery, and user recommendations can be managed as separate services.
3. IoT Applications: Effective in IoT ecosystems where distinct services can independently handle device management, data processing, and analytics.
4. Financial Services: Used in financial applications where services like transaction processing, fraud detection, and customer management require isolation for security and efficiency.

In conclusion, the Microservices Architecture pattern is well-suited for applications that require agility, scalability, and independence in deployment and maintenance.

While offering numerous benefits, it's essential to consider its inherent complexities and challenges, particularly in communication, management, and testing, to ensure a successful implementation.

Event-Driven Architecture Pattern

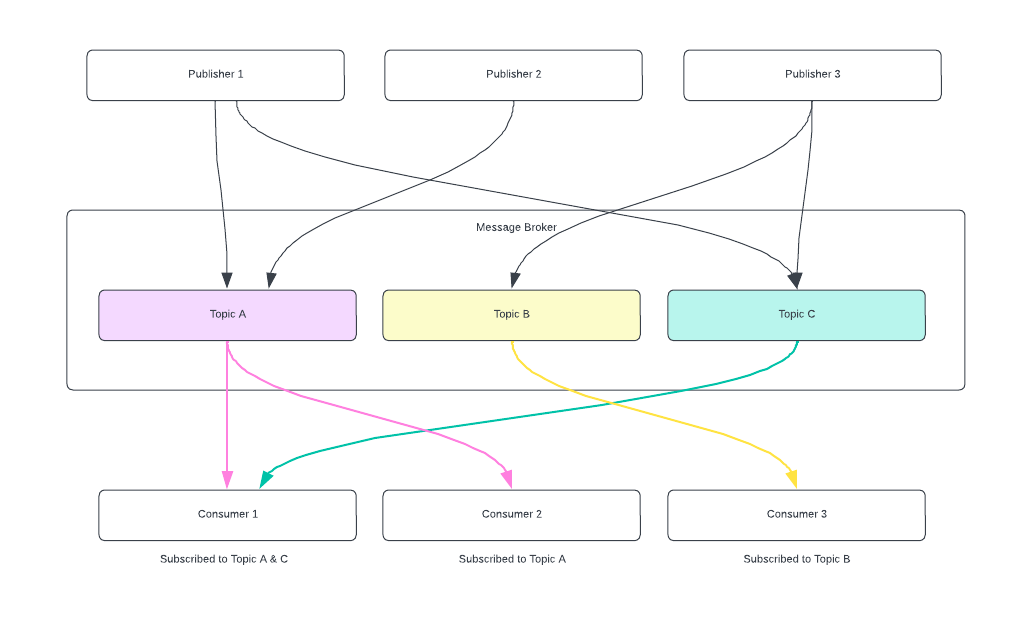

The Event-Driven Architecture (EDA) pattern is a design paradigm centered around the production, detection, consumption, and reaction to events.

In this architecture, events are significant state changes emitted by event producers and received by event consumers or processors.

This pattern promotes a highly decoupled and scalable system design, where components communicate asynchronously through events, making it highly responsive and dynamic.

Pros of Event-Driven Architecture

1. High Responsiveness: Systems can react to events in real-time, making them highly responsive to changes or user actions.
2. Decoupling of Components: Components in the system are loosely coupled, as they only communicate through events. This reduces dependencies and makes the system more modular.
3. Scalability: The decoupled nature allows for easy scaling of individual components, accommodating varying loads efficiently.
4. Flexibility and Agility: New event consumers or producers can be added without significantly impacting existing components, allowing for easy system evolution.
5. Improved User Experience: Real-time processing of events can lead to a more dynamic and responsive user experience.

Cons of Event-Driven Architecture

1. Complexity in Event Management: Managing and correctly processing many events can be challenging.
2. Debugging Difficulty: Asynchronous and decoupled systems can be more complex than traditional synchronous systems.
3. Potential for Event Overload: Without proper management, systems may become overwhelmed by a high volume of events, leading to performance issues.
4. Event Consistency: Ensuring data consistency across different components and handling event failure scenarios can be complex.

Dependency on Messaging Systems: EDA often relies on robust messaging systems, and any failure in these systems can impact the whole architecture.

Use Cases for Event-Driven Architecture

1. Real-Time Analytics: Ideal for scenarios requiring immediate data processing and analysis, such as fraud detection or stock trading platforms.
2. Internet of Things (IoT) Applications: Suitable for IoT systems where devices emit events based on sensor readings, which are then processed asynchronously.
3. E-commerce Applications: Effective for handling diverse user actions, like cart updates, order placements, and inventory changes, as individual events.
4. Complex Event Processing: Utilized in scenarios involving the correlation of multiple events to detect patterns, like in security monitoring or predictive maintenance.

In conclusion, the Event-Driven Architecture pattern is advantageous for systems requiring high responsiveness, flexibility, and scalability.

It excels in dynamic environments where events are a core part of the system's functionality. However, the challenges in managing and monitoring events, ensuring consistency, and dealing with the inherent complexity of asynchronous systems must be carefully addressed to ensure a successful implementation.

Service-Oriented Architecture (SOA) Pattern

The Service-Oriented Architecture (SOA) pattern is a design approach where applications consist of discrete software modules, known as services, that communicate through well-defined interfaces and protocols.

These services are designed to provide specific business functionalities and are loosely coupled, allowing for interoperability and flexibility. SOA emphasizes reusability, efficiency, and agility in integrating various services to compose complex applications.

Pros of Service-Oriented Architecture

1. Reusability: Services can be reused across different applications, reducing development time and cost.
2. Flexibility: SOA allows for more straightforward adaptation to changing business requirements due to the loose coupling of services.
3. Interoperability: Services can interact across different platforms and technologies, facilitating integration in heterogeneous environments.
4. Scalability: Individual services can be scaled independently to meet varying demands.
5. Maintenance Efficiency: Isolated services are more accessible to update and maintain without affecting the entire system.

Cons of Service-Oriented Architecture

1. Complexity in Integration: Integration and orchestration of multiple services can be complex and resource-intensive.
2. Performance Overhead: The communication between services, often over a network, can introduce latency and performance overhead.
3. Management and Monitoring Challenges: SOA systems require robust management and monitoring to ensure seamless service interaction and performance.
4. Testing Difficulties: End-to-end testing of applications built using SOA can be complicated due to the involvement of multiple distributed services.
5. Security Concerns: The exposed interfaces and service communication increase security considerations and requirements.

Use Cases for Service-Oriented Architecture

1. Enterprise Application Integration: Ideal for integrating disparate enterprise applications and systems, enabling them to work together seamlessly.
2. Business Process Management: Effective in automating and optimizing complex business processes by orchestrating various services.
3. Multi-Channel Access: Suitable for applications needing consistent functionality across various channels (web, mobile, desktop).
4. Cloud Services: Utilized in cloud computing where services can be offered, consumed, and managed over the cloud.
5. Legacy System Modernization: SOA can be used to wrap legacy systems, exposing their functionalities as services for integration with modern applications.

In conclusion, the Service-Oriented Architecture pattern is a powerful approach for creating flexible, scalable, and interoperable enterprise-level applications.

While it offers significant advantages in terms of reusability and maintenance, it also introduces challenges in integration, performance, and security. Effective implementation of SOA requires careful planning and consideration of these aspects to leverage its benefits fully.

Model-View-Controller (MVC) Architecture Pattern

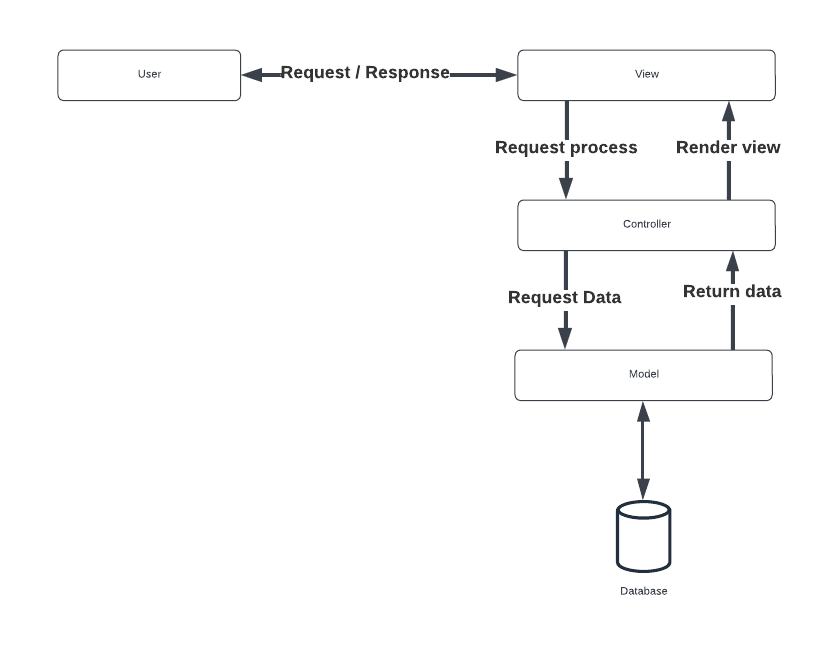

The Model-View-Controller (MVC) architecture pattern is a widely used design paradigm in software engineering, particularly in web and desktop applications.

It divides the application into three interconnected components: the Model, which represents the application's data and business logic; the View, the user interface; and the Controller, which acts as an intermediary between the model and the View.

This separation facilitates modular development, ease of modification, and parallel development.

Pros of MVC Architecture

1. Separation of Concerns: By separating the user interface (View) from the business logic (Model) and the control flow (Controller), the system becomes more organized and manageable.
2. Simplified Maintenance: Changes in one component (e.g., the user interface design) can be made with minimal impact on the others, simplifying maintenance and updates.
3. Enhanced Testability: Each component can be tested independently, improving coverage and making unit testing more straightforward.
4. Reusability: The modular nature allows for the reuse of components, especially the business logic, across different parts of the application or various applications.
5. Adaptability to User Interface Changes: Decoupling business logic from the user interface makes it easier to update the UI without affecting the underlying logic.

Cons of MVC Architecture

1. Complexity: MVC can introduce unnecessary complexity for small projects, making managing the project more challenging.
2. Learning Curve: Understanding the interactions between the three components can be challenging for newcomers.
3. Overhead: The separation can increase the number of classes and objects, affecting performance.
4. Integration Challenge: Integrating MVC architecture with other design patterns or technologies can be complex.
5. Risk of Excessive Updates: Frequent changes in one component can lead to a cascade of modifications in the others if not appropriately managed.

Use Cases for MVC Architecture

1. Web Applications: MVC is ideal for web applications where a clear separation between the presentation layer and business logic is beneficial.
2. Desktop Applications: Suitable for complex desktop applications requiring a robust structure for managing UI and business logic independently.
3. Single-Page Applications (SPAs): Effective in SPAs where dynamic user interface updates are frequent and independent of the server-side logic.
4. Rapid Development Projects: MVC supports rapid and parallel development, making it suitable for projects with tight deadlines and multiple developers.

In conclusion, the Model-View-Controller architecture pattern is an excellent choice for applications requiring a clear separation of concerns and flexibility in user interface design.

Its modular nature enhances maintainability and testability but can introduce complexity, especially in smaller projects. Its effective implementation requires careful planning and understanding of the interactions between its components.

Peer-to-Peer (P2P) Architecture Pattern

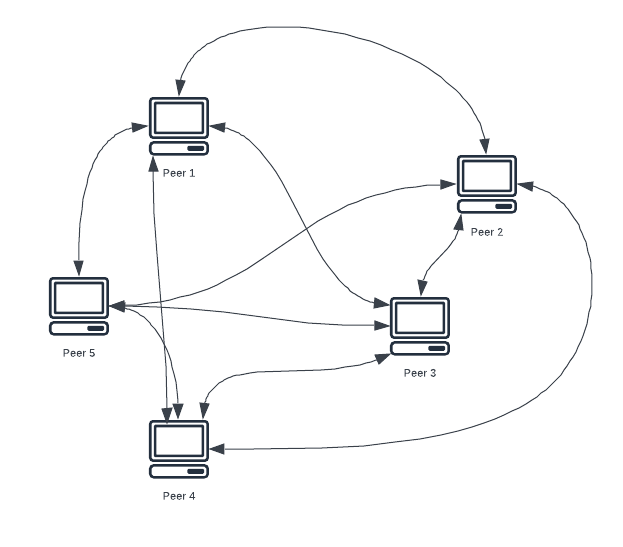

The Peer-to-Peer (P2P) architecture pattern is a decentralized computing architecture that distributes tasks and workloads among equally privileged participants, known as peers.

Each peer in a P2P network uses and provides resources, contrasting with traditional client-server models where the client consumes and the server provides. This model is highly scalable and is used in various applications, ranging from file sharing to distributed computing.

Pros of Peer-to-Peer Architecture

1. Scalability: The P2P architecture efficiently handles increasing participants as each new peer adds to the network's overall capacity.
2. Fault Tolerance: The decentralized nature ensures that the network remains operational even if some peers are unavailable or fail.
3. Reduced Infrastructure Costs: Since there is no need for central servers, infrastructure costs can be significantly lower.
4. Load Distribution: Workloads and resources are distributed among peers, reducing the reliance on a single point of failure.
5. Direct Communication: Peers can interact directly with each other, potentially improving efficiency and speed.

Cons of Peer-to-Peer Architecture

1. Security Risks: The open and decentralized nature of P2P networks can make them more susceptible to security vulnerabilities and malicious activities.
2. Inconsistent Performance: Since peers may have varying capabilities and resources, performance can be inconsistent compared to centralized systems.
3. Data Integrity: Ensuring data integrity and consistency across a P2P network can be challenging.
4. Legal and Ethical Issues: P2P networks are often associated with illegally sharing copyrighted material, raising legal and ethical concerns.
5. Dependence on Peer Participation: The network's performance and health heavily depend on the active participation of peers.

Use Cases for Peer-to-Peer Architecture

1. File Sharing Applications: P2P is widely used for file-sharing applications, allowing direct file transfer between peers without requiring a central server.
2. Cryptocurrencies: Blockchain technology, a distributed ledger used in cryptocurrencies, operates on a P2P network.
3. Content Distribution Networks: P2P can be used to distribute content efficiently, reducing the load on individual servers.
4. Collaborative Work: Applications like collaborative document editing can benefit from P2P architectures, allowing real-time user interaction.
5. Distributed Computing: P2P networks are suitable for distributed computing projects that require pooling resources from numerous computers to solve complex problems.

In conclusion, the Peer-to-Peer architecture pattern is a practical choice for applications that require distributed resources and high scalability.

While offering cost, fault tolerance, and load distribution advantages, it also challenges security, data integrity, and performance consistency.

The success of a P2P system heavily relies on the active and consistent participation of its peers.

Representational State Transfer (REST) Architecture Pattern

The Representational State Transfer (REST) architecture pattern is a widely adopted approach for designing networked applications.

It relies on a stateless, client-server communication protocol, typically HTTP. RESTful systems are characterized by their simplicity, scalability, and performance.

In REST, resources like data and functionality are accessed using Uniform Resource Identifiers (URIs) and manipulated using standard HTTP methods like GET, POST, PUT, and DELETE.

Pros of REST Architecture

1. Scalability: The stateless nature of RESTful services allows for easy scaling to handle large requests.
2. Performance: REST uses a cacheable communication protocol, which can improve response times and reduce server load.
3. Simplicity: REST uses standard HTTP methods, making it easy to understand and implement.
4. Flexibility: Clients and servers can be developed independently if they adhere to the defined interface.
5. Language and Platform Agnosticism: RESTful services can be written in any programming language and run on any platform.

Cons of REST Architecture

1. Statelessness: While statelessness improves scalability, it can also lead to redundant data transfer over the network, as each request must contain all the information necessary for processing.
2. Security: RESTful APIs often require additional security layers, as HTTP does not provide encryption or session management.
3. Performance Overhead: REST can be less efficient for some operations, requiring multiple requests to perform complex operations.
4. Limited Methods: The standard HTTP methods (GET, POST, PUT, DELETE) may be limiting for some complex application requirements.
5. Data Overhead: RESTful communication can sometimes involve more significant amounts of data sent due to standard formats like JSON or XML.

Use Cases for REST Architecture

1. Web Services: Ideal for web services where lightweight, stateless communication is required.
2. Mobile Applications: Suitable for mobile apps needing to interact with servers over a network, where bandwidth and efficiency are critical.
3. Cloud Services: Effective in cloud-based services where interoperability and scalability are essential requirements.
4. Microservices: REST is commonly used in a microservices architecture for inter-service communication.
5. Internet of Things (IoT): Useful in IoT applications where diverse devices require a standard and straightforward way to communicate over the network.

In conclusion, the REST architecture pattern is highly effective for designing networked applications that are scalable, flexible, and universally accessible.

While it brings the advantages of simplicity and performance, it also poses challenges to state management and security. RESTful design is particularly well-suited for applications where efficient, stateless communication is desired and where the simplicity of HTTP-based interaction aligns with the application requirements.

Publish-Subscribe (Pub-Sub) Architecture Pattern

The Publish-Subscribe (Pub-Sub) pattern is a software architecture design pattern where system components communicate through a message-passing mechanism.

In this pattern, publishers send messages without knowing who the subscribers are. Conversely, subscribers receive messages without needing to know who the publishers are.

This separation is often managed by a message broker or event bus. The Pub-Sub pattern is widely used for decoupling various system parts.

It is particularly effective in scenarios where many users or components need to be notified of events or changes in the system, such as in real-time data processing or event-driven architectures.

Pros of Pub-Sub Architecture

1. Decoupling of Components: Publishers and subscribers are decoupled, allowing for independent development and scalability.
2. Scalability: The pattern scales well with an increasing number of producers and consumers, as the message broker or event bus handles the message distribution efficiently.
3. Flexibility in Communication: New subscribers can be added easily without affecting existing publishers, and vice versa.
4. Asynchronous Communication: Enables asynchronous processing, where publishers and subscribers do not need to interact or wait for each other.
5. Fault Tolerance: The architecture can be more resilient to faults, as the failure of a single publisher or subscriber doesn't directly affect others.

Cons of Pub-Sub Architecture

1. Complexity in Message Management: Managing a large volume of messages and ensuring timely delivery can become complex.
2. Dependency on Broker: The system's reliability heavily depends on the robustness of the broker's or event bus.
3. Latency Issues: In high-volume systems, the time it takes to distribute messages can lead to latency.
4. Data Consistency Challenges: Ensuring data consistency across subscribers can be difficult, especially in distributed systems.
5. Security Concerns: Implementing secure communication between publishers and subscribers requires additional effort, especially over open networks.

Use Cases for Pub-Sub Architecture

1. Real-Time Data Services: Ideal for applications requiring real-time updates, like stock trading platforms or live sports scores.
2. Event Logging and Monitoring: Effective for systems that need to log and monitor events in real-time, such as in application monitoring tools.
3. Notification Systems: Suitable for notification and alert systems where users need to be notified of certain events or changes.
4. IoT Systems: Useful in IoT ecosystems for handling messages from many sensors and devices.
5. Content Distribution Networks: Can be employed in content distribution networks to update and synchronize data across multiple nodes.

In conclusion, the Pub-Sub architecture pattern is highly effective for systems requiring decoupled, scalable, and asynchronous communication. While it offers flexibility and fault tolerance advantages, it also presents challenges in message management, latency, and security. The pattern is particularly well-suited for applications that require real-time data dissemination and event-driven interactions.

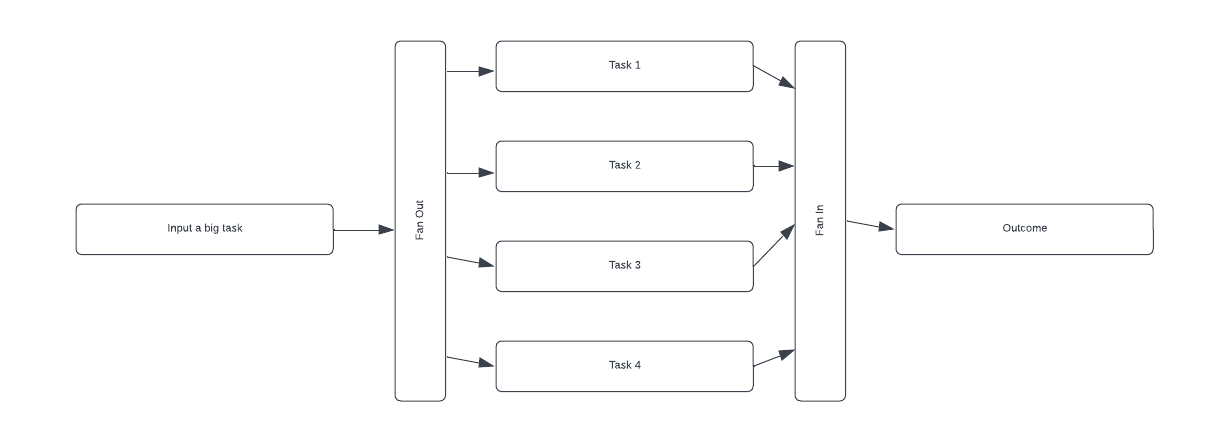

Fan-Out/Fan-In Architecture Pattern

The Fan-Out/Fan-In pattern is a software architecture design pattern commonly used in distributed systems, particularly in scenarios involving parallel processing or handling extensive data or tasks. This pattern involves two key stages:

Fan-Out: In this stage, a larger task or data set is divided into numerous smaller, independent functions that can be processed in parallel. The "fan-out" term refers to the branching out of these tasks to different workers or processing units.

Fan-In: After the parallel processing is complete, the results of these smaller tasks are then aggregated, or "fanned in," to form an outcome or to complete the overall task.

This pattern is beneficial in scenarios where a task can be naturally divided into independent subtasks, allowing for efficient parallel processing. By leveraging the Fan-Out/Fan-In pattern, systems can achieve greater scalability and improved performance, especially when dealing with large-scale computations or data processing jobs.

Pros of the Fan-Out/Fan-In Pattern

1. Enhanced Performance and Efficiency: By distributing tasks across multiple workers or processors, the Fan-Out/Fan-In pattern significantly speeds up processing, especially for data-intensive or computationally heavy tasks.
2. Scalability: This pattern allows systems to handle more tasks or data by adding more processing units, making it highly scalable.
3. Concurrency: It facilitates concurrent processing of tasks, leading to more efficient use of resources and faster completion times.
4. Fault Tolerance: If one of the parallel tasks fails, it can be retried or handled without affecting the entire process, thereby improving the system's fault tolerance.
5. Flexibility in Resource Utilization: Resources can be dynamically allocated or de-allocated to the fan-out tasks as required, optimizing resource utilization.

Cons of the Fan-Out/Fan-In Pattern

1. Complexity in Implementation: Managing and orchestrating the distribution and aggregation of tasks can be complex, requiring robust control mechanisms.
2. The overhead of Coordination: The need to coordinate between multiple tasks and aggregate results can introduce additional overhead, impacting performance.
3. Potential for Bottlenecks: The fan-in stage can become a bottleneck if the aggregation process is inefficient or the system needs to be well-balanced.
4. Dependency on Task Independence: The pattern works best when tasks are independent; interdependent tasks can complicate the process and reduce efficiency.
5. Resource Intensiveness: The pattern may require substantial computational and network resources for large-scale implementations.

Use Cases for the Fan-Out/Fan-In Pattern

1. Data Processing and Analytics: Ideal for scenarios involving large-scale data processing tasks, such as big data analytics, where data can be processed in parallel and then aggregated for final analysis.
2. Batch Processing Jobs: Suitable for batch processing in financial, scientific, or engineering applications where large datasets are processed in smaller, parallel tasks.
3. Image or Video Processing: Used in image or video rendering and processing, where different segments can be processed independently before being combined.
4. Distributed Computing Projects: Effective in distributed computing scenarios, like grid computing, where tasks are spread to multiple nodes for parallel processing.
5. Load Balancing in Web Applications: In web applications, especially during high-traffic periods, requests can be fanned out to multiple servers for load balancing, and then aggregated responses can be sent back to users.

In summary, the Fan-Out/Fan-In pattern is highly effective for parallel processing and handling large volumes of tasks or data, offering significant benefits in terms of performance and scalability.

However, it requires careful management of task distribution and aggregation. It is most effective when tasks are independent of one another.

The Strangler Pattern Architecture Pattern

The Strangler Pattern is a software architecture design pattern used for gradually transforming a legacy system into a new system in a controlled and incremental manner.

The name "Strangler" is derived from the strangler fig, which slowly grows around and eventually replaces an existing tree.

In this pattern, new functionality is built into a new system. In contrast, existing functionality continues to operate in the old system. Over time, individual functionality from the old system is "strangled" - that is, replaced by new implementations in the new system.

This approach allows for a smooth transition, where the old and new systems coexist, and functionalities are transferred progressively until the old system can be decommissioned entirely.

The Strangler Pattern is particularly useful when rebuilding a legacy system from scratch, which could be more practical due to risks, costs, or complexity. It enables incremental updates, reduces the risk of big-bang replacements, and allows for continuous delivery and improvement.

Pros of the Strangler Pattern:

1. Risk Mitigation: By incrementally replacing parts of the old system, the Strangler Pattern minimizes the risks associated with a big-bang replacement approach, such as system outages or catastrophic failures.
2. Continuous Delivery: Allows constant development and deployment of new features without disrupting the existing system, ensuring business continuity.
3. Gradual Learning and Adaptation: Teams can learn and adapt as they progressively work with the new system rather than facing the steep learning curve of a completely new system all at once.
4. Testing and Validation: Each unique piece can be thoroughly tested and validated before it replaces the corresponding part of the old system, ensuring stability and reliability.
5. Flexibility in Prioritization: Enables prioritizing which components to replace first based on business needs, technical debt, or other factors.

Cons of the Strangler Pattern:

1. Temporary Increased Complexity: Managing two systems simultaneously (old and new) can temporarily increase overall complexity and maintenance overhead.
2. Potential for Duplicate Effort: Some effort might be duplicated as features need to be maintained in both systems during the transition period.
3. More extended Transition Period: The process can be time-consuming, involving a gradual transition rather than a quick overhaul.
4. Coordination Overhead: Requires careful planning and coordination to ensure that new and old parts of the system integrate and function well together during the transition.
5. Resource Intensity: Depending on the scale of the legacy system, the process can be resource-intensive in terms of development and operational costs.

Use Cases for the Strangler Pattern:

1. Legacy System Modernization: Ideal for modernizing and upgrading legacy systems crucial to business operations but outdated or inefficient.
2. Incorporating New Technologies: Useful when transitioning to new technologies or architectures (e.g., moving from a monolithic architecture to microservices).
3. Large-Scale Refactoring: Applicable when system parts require significant refactoring or re-architecting.
4. Compliance and Security Upgrades: Can be used when systems need to be updated to meet new compliance standards or security requirements without a complete system overhaul.

In conclusion, the Strangler Pattern is a practical approach for modernizing legacy systems in a controlled and incremental way, minimizing risks and allowing for continuous improvement. While it introduces temporary complexities, its risk reduction and flexibility benefits often outweigh these challenges, especially in critical and large-scale systems.

Common Mistakes in Using Software Architecture Patterns

Software architecture patterns provide a blueprint for structuring and designing software systems. However, their effectiveness hinges on the context of their application and the understanding of their strengths and limitations. Common mistakes in using these patterns include:

1. Rigid adherence to a pattern without considering specific project needs.
2. Misapplication of a pattern in an unsuitable context.
3. Overlooking the performance implications of a chosen pattern.

These errors can lead to systems that are difficult to maintain, scale, or meet user needs.

1. Rigid Adherence to a Pattern

Mistaking patterns as one-size-fits-all solutions, Architects sometimes treat a popular pattern as a universal solution, applying it even when the project's unique requirements might require a different approach.

For example, using the Microservices Architecture for a small-scale application results in unnecessary complexity and overhead in deployment and management.

2. Misapplication of a Pattern

Selecting an architecture pattern without thoroughly evaluating the specific needs and constraints of the project can lead to suboptimal or even problematic designs.

For example, an event-driven architecture in a system where most operations are simple CRUD (Create, read, update, delete) actions causes unnecessary complexity and latency issues.

3. Ignoring Performance Implications

Architects may choose a pattern without fully considering its scalability and performance implications, leading to systems that cannot handle increased load or have poor performance.

For example, implementing a Client-Server Architecture in a high-load, real-time processing system where a P2P architecture might be more effective in distributing the workload and reducing latency.

In conclusion, while software architecture patterns are essential tools in a developer's arsenal, they must be applied with a keen understanding of their appropriate context and limitations.

Avoiding rigid adherence, carefully evaluating the suitability of a pattern for a specific project, and considering performance implications are essential to successfully leveraging these patterns.

How to Avoid Mistakes in Using Architecture Patterns

Avoiding common pitfalls requires a deep understanding of the context and an iterative approach to design.

Here are some key strategies to help ensure the successful implementation of architecture patterns:

1. Tailor Patterns to Specific Needs: Adapt architecture patterns to fit the unique requirements of your project rather than forcing your project to conform to the pattern.
2. Stay Open to Alternatives: Consider multiple patterns and evaluate how each might address your challenges before deciding.
3. Balance Trade-offs: Understand the trade-offs of each pattern and weigh them against your project's priorities, such as performance, scalability, maintainability, and time-to-market.
4. Thorough Requirement Analysis: Spend adequate time understanding the problem domain, business requirements, and technical constraints. This understanding is crucial in selecting the most appropriate architectural pattern.
5. Seek Domain Expertise: Involve domain experts in decision-making to gain insights into specific challenges and industry standards.
6. Evaluate Project Scale and Complexity: Consider the size and complexity of your project. A simple solution for a small project might not scale well for an extensive enterprise application, and vice versa.
7. Prototype and Test Early: Build prototypes using the chosen pattern and test them early in development. This helps identify potential issues and assess the pattern's suitability for your project.
8. Incorporate Continuous Feedback: Use feedback loops from testing, stakeholder reviews, and user feedback to refine and adjust the architecture.
9. Be Prepared to Pivot: Stay flexible and be prepared to revise your architectural approach if it becomes clear that the chosen pattern isn't working as expected.

In summary, the key to avoiding architectural pattern mistakes lies in flexible application, deep context understanding, adopting an iterative approach with continuous feedback, and staying open to change based on real-world feedback.

Combining Multiple Patterns in a Single Project

Integrating multiple architecture patterns in a single project is feasible and often necessary to address complex requirements. However, this approach requires careful planning and consideration:

1. Choose patterns that complement each other without causing conflicts in principles or implementation.
2. Each added pattern increases the system's complexity. Ensure the benefits outweigh the added complexity.
3. Define clear boundaries and interfaces between the components governed by different patterns to maintain a coherent system architecture.
4. Ensure consistent communication and data flow between components managed by different patterns.
5. Evaluate how the combination of patterns impacts the overall performance and scalability of the system.

Strategies for Effectively Integrating Multiple Patterns

1. Implement different patterns at different application layers. For example, MVC is used for the user interface, Microservices is used for business logic, and Event-Driven is used for asynchronous processing.
2. Use domain-driven design to identify subdomains within a project and apply the most suitable pattern to each.
3. Create hybrid models that blend elements of different patterns to suit specific project needs.
4. Develop each part of the application independently using the chosen pattern and integrate them using well-defined interfaces and APIs.

Examples Where Multiple Patterns Have Been Successfully Implemented

E-commerce Platforms: Large e-commerce platforms often combine Microservices for managing different aspects of the platform (e.g., inventory, ordering, user management) with Event-Driven Architecture for real-time updates and notifications and MVC for the user interface.

Financial Systems: Complex financial systems might use a combination of Service-Oriented Architecture (SOA) for integrating legacy systems, Microservices for new services, and Event-Driven Architecture for real-time transaction processing.

Social Media Applications: Social media platforms often blend P2P architectures for content distribution, Microservices for feature modularity, and MVC for frontend rendering.

In conclusion, combining multiple architecture patterns in a single project can effectively address complex and diverse requirements.

However, this approach requires a deep understanding of the patterns involved, a careful analysis of the project requirements, and a strategic approach to integration.

In conclusion, architects and developers should approach these patterns as tools in their toolkits to be used judiciously and adapted to meet the needs of their projects to build technically sound, resilient, and adaptable systems to future changes.

Further Reading and Resources

• Design Patterns: Elements of Reusable Object-Oriented Software by Erich Gamma, Richard Helm, Ralph Johnson, and John Vlissides: This classic book introduces fundamental software design patterns.
• Patterns of Enterprise Application Architecture by Martin Fowler: A guide to enterprise-level design patterns covering theory and practical applications.
• Clean Architecture: A Craftsman's Guide to Software Structure and Design by Robert C. Martin Offers insights into maintaining and arranging software architecture for long-term viability.
• Building Microservices: Designing Fine-Grained Systems by Sam Newman is a comprehensive book focusing on the microservices architecture pattern.
• Fundamentals of Software Architecture by Mark Richards: This book overviews various software architecture patterns and their trade-offs.
• Martin Fowler's Blog: A valuable resource for articles on software architecture, design patterns, and more.
• Refactoring.Guru: refactoring.Guru: Great for learning design patterns and refactoring techniques with easy-to-understand examples.

Remember, the field of software architecture is constantly evolving, so staying updated through these resources is vital to a deep and current understanding.
